Description

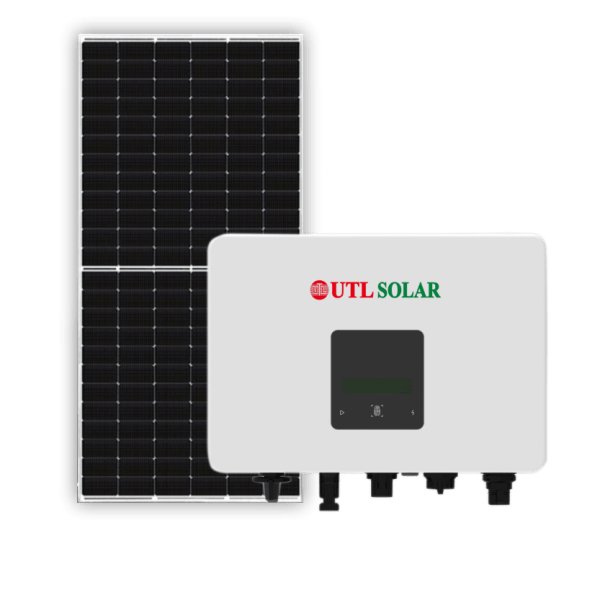

The UTL 5kW Grid Tie Solar System generates 20-25 units of electricity per day, making it perfect for homes and small businesses. It comes with high efficiency ALMM approved solar panels with 27 years of linear output warranty and MPPT Ongrid inverter with 10 years onsite warranty. With excellent customer service and the best price in the market, it’s a cost-effective solution for reducing electricity bills while promoting clean, sustainable energy.
Unique Features of Ongrid Inverter
- Low Startup Voltage
- PV Overload Up to 30%
- DC switch available on above 4.2kW
- Wide AC Voltage Range (160V to 290V).
- Working Temperature Up to 65°C
- AC & DC Side Type-II 20kA SPD (Double Surge Protection)
- Less Noise Emission >25dB
- Remote Monitoring through UTL SOLAR App
- High MPPT Efficiency Up to 99%
- Power Export Limiting
- Easy Installation & Low Maintenance
Solar Kit items
5DC CABLE (Red & Black)1CX4 SQmm Cu. Flexible DC Cable
| Item No | Description of Items | Specification |
| 1 | SOLAR PV MODULE | 575W TopCON DCR Bi-facial (Half-cut) Solar Panel X 9 |
| 2 | UTL ON GRID INVERTER | UTL 5.3F1GT-GX |
| 3 | DCDB 1 IN 1OUT WITH SPD & FUSE | IP65 BOX, 20A DC Fuse for each string & (DC SPD II) 1000V |
| 4 | ACDB 5KW | 2 Pole 32 Amp MCB + AC SPD Type 2 + IP 65 Polycarbonate Enclosure |
| 5 | Inverter to ACDB (AC CABLE) | 2C*4 SQmm Cu. Flexible Cable |
| 6 | ACDB to LT PANEL (AC CABLE) | 2C*4 SQmm Cu. xlpe armoured cable |
| 7 | EARTHING ROD | GI earthing rod 2 mtr Length (50MM DIA) / Copper earthing rod 2 mtr Length rod (14MM DIA) |
| 8 | EARTHING CHEMICAL BAG | 25 kg earthing chemical bag |
| 9 | EARTHING CHAMBER | 300MM DIA |
| 10 | Earthing Cable for LA | 1C x 10 SQmm – Cu. Flexible Cable |
| 11 | Earthing Cable for DC & AC | 1C x 6 SQmm – Cu. Flexible Cable |
| 12 | Ring Type Thimble | 6SQMM |
| 13 | Ring Type Thimble | 10SQMM |
| 14 | PIN Type Thimble | 4 SQMM |
| 15 | PIN Type Thimble | 6 SQMM |
| 16 | SS304 Nut bolt with Washer | M8x30mm |
| 17 | HDPE Conduit (25 mm) | UV protected (25mm) |
| 18 | Elbow (25 mm) | UV protected (25mm) |
| 19 | T Bend (25 mm) | UV protected (25mm) |
| 20 | I bend (25 mm) | UV protected (25mm) |
| 21 | PU FOAM | PU foam bottle 750ml |
| 22 | Saddle | UV protected |
| 23 | Gitti | UV protected |
| 24 | Ferrul | Tube type ferrul |
| 25 | Screw | UV protected |
| 26 | Cable Tie – 300 | UV protected nylon Cable Tie |
| 27 | Danger Sign (AC+DC) | UV protector (UTL) |
| 28 | MC4 Connectors with pin | Solar Connector MC4 DC 1000V 30A IP67 Male-Female |
| 29 | Electrical Tape R,B,B,G | red-1, blue-1, black-1, green-1 |
| 30 | LA with HDG Stand | copper Bonded LA with 2 Mtr stand |
| 31 | Flexible Pipe | PVC Flexible Pipe 25mm |
Steps to Purchase
- Select the product variant that best meets your needs.
- Complete your order by making the payment based on the listed price.
- UTL Solar will connect you with an authorized Channel Partner for further assistance.
- The Channel Partner will request essential documents for verification.
- A convenient site visit will be arranged to assess your requirements.
- You will receive a detailed quotation covering installation charges, liaison fees, and any additional structural costs.
- The authorized Channel Partner will handle the installation with professionalism and care.
- Settle the installation and associated charges directly with the Channel Partner.
- Once the installation payment is complete, UTL Solar will promptly ship your product to your location.
Important Points to Remember
- Eligibility for subsidies will be subject to evaluation and approval.
- UTL Solar is responsible for the product only.
- UTL Solar will not be held accountable for installation services.
- Installation and maintenance services will be managed exclusively by the authorized Channel Partner.
- Structural, Net metering and installation charges are not included in the listed product price.
Order Cancellation Policy
- Orders can be cancelled before the product is shipped.
- A site visit fee of Rs. 750 will be deducted from the refund amount.
- Once the product has been dispatched, cancellations will not be accepted.
