Description

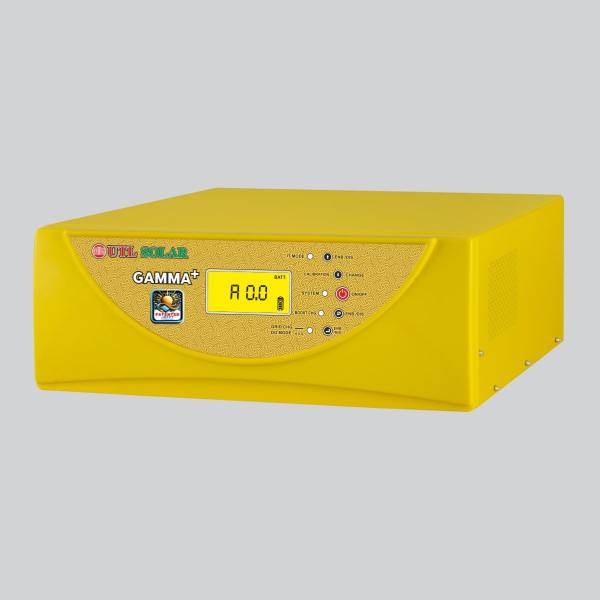

Gamma Plus MPPT Solar Inverter 1 kVA /24 Volt
Gamma + PCU (Power Conditioning Unit) is an integrated unit consists of grid charger, inverter, MPPT Solar Charger. It continuously monitors Battery and Solar voltage as well as Grid and Output voltage with their currents. MPPT based solar charger extracts the maximum power from the solar panels whereby it increases the efficiency of the system. MPPT charger has multistage charging which maintains the battery charging voltage such that it increases the lifespan of battery.
Gamma+ is very easy to install. It fits your budget and also helps to cut your electricity costs. So, it is double advantage to the user!! Unlike other sources of energy, Gamma+ and the Solar Panel do not emit harmful gases and residue. Thus, it helps in keeping the environment clean and healthy.
Rating Available: 1kVA/12V & 1kVA-24V
Key Features
Controller based Design, Pure Sine Wave Built in rMPPT Charge Controller
MPPT is a technique used with photovoltaic(PV) solar systems to maximize power extraction under all conditions.
rMPPT, or maximum power point tracker is an electronic DC to DC converter that optimizes the match between the solar array (PV panels), and the battery bank. To put it simply, they convert a higher voltage DC output from solar panels down to the lower voltage needed to charge batteries.
LCD Display
Gamma+ is available with LCD, for better user interface. It shows battery voltage, charging current, output voltage , output frequency, output load percentage, Input voltage, Input frequency, solar voltage, solar current & consume solar power. It has four switches to configure Operational mode – Grid charger, IT Load, Smf/Tub, boost charging & mode selection.
User Configurable by LCD
All the parameters like battery charging voltage, battery high cut, battery low cut, battery charging current can be adjusted manually by the user as per their choice or requirement.
Charging Multi Stage (Bulk, Absorption & Float) Auto Equalize
To increase the life of battery maintain the gravity and temperature and to increase the backup of battery we use the stages of charging and equalize automatically in a month.
Compatible with DG as an input Source
The frequency of DG output is a very vital parameter that always varies. And if the system is in DG enable mode then the system will be compatible to take any of the frequency as the input source frequency.
Compatible with IT Load
IT mode is used for IT loads which provide protections to IT instruments like computers, printers etc. In IT mode the change over time is very less so that there should not any kind of breakdown in power supply.
Operating Mode Selection
PCU Mode – Priority Solar →Battery → Grid
Smart Mode – Priority Solar → Grid → Battery
Hybrid Mode – Priority for load Grid →Solar →Battery,
Priority for battery charging Solar → Grid
